COUPLERS AND ADAPTORS

ASIA 7.5mm Daisen 20 series interchangeable with Nitto Hi Couplers

Two touch connection Will pass up to 70CFM@90PSI

Also available in Brass and Stainless steel

Daisen 20 SF Series Socket Female Thread

DAISEN 20 SERIES: SF
SOCKET FEMALE THREAD

PART# THREAD BSPF
20SF 1/4"
30SF 3/8"
40SF 1/2"
Daisen 20 Series PF Plug Female Thread

DAISEN 20 SERIES: PF
PLUG FEMALE THREAD

PART# THREAD BSPF
20PF 1/4"
30PF 3/8"
40PF 1/2"
Daisen 20 SM Series Socket Male Thread

DAISEN 20 SERIES: SM
SOCKET MALE THREAD

PART# Thread BSPM
20SM 1/4"
30SM 3/8"
40SM 1/2"
Daisen 20 PM Series Plug Male Thread

DAISEN 20 SERIES: PM
PLUG MALE THREAD

PART# Thread BSPM
20PM 1/4"
30PM 3/8"
40PM 1/2"
Daisen 20 SH Series Socket Hosetail

DAISEN 20 SERIES: SH
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
20SH 1/4"
30SH 3/8"
40SH 1/2"
Daisen 20 PH Series Plug Hosetail

DAISEN 20 SERIES: PH
PLUG HOSETAIL

PART# TO SUIT HOSE ID
20PH 1/4"
30PH 3/8"
40PH 1/2"

ASIA 7.5mm Daisen one touch series interchangeable with Nitto Hi Couplers

Will pass up to 90CFM@90PSI

One touch connection

SOF Socket Female Thread

SOF
SOCKET FEMALE THREAD

PART# THREAD BSPF
22-SOF 1/4"
23-SOF 3/8"
24-SOF 1/2"
PRB Swivel Plug Hose Barb

PRB
SWIVEL PLUG HOSE BARB

PART# TO SUIT HOSE ID
22-PRB 1/4"
23-PRB 3/8"
24-PRB 1/2"
SOM Socket Male Thread

SOM
SOCKET MALE THREAD

PART# Thread BSPM
22-SOM 1/4"
23-SOM 3/8"
24-SOM 1/2"
DPH Safety Purge Swivel Plug Hose Barb

DPH
SAFETY PURGE SWIVEL PLUG HOSE BARB

PART# TO SUIT HOSE ID
22-DPH-P 1/4"
23-DPH-P 3/8"
24-DPH-P 1/2"
SOH Socket Hose Tail

SOH
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
22-SOH 1/4"
23-SOH 3/8"
24-SOH 1/2"
FP Free Angle Plug

FP
FREE ANGLE PLUG

PART# Thread BSPM
FP-2M 1/4" MALE
FP-3M 3/8 MALE"
SOH R Swivel Socket Hosetail

SOHR
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
22-SOH 1/4"
23-SOH 3/8"
24-SOH 1/2"
Daisen PUR Series DPC Swivel Socket for Polyurathane Tube

DAISEN PUR SERIES: DPC
SOCKET FOR POLYURETHANE TUBE

PART # TO SUIT PU TUBE SIZE
50-DPC 5X8MM
65-DPC 6.5X10MM
80-DPC 8X12MM
110-DPC 11X16MM
Daisen PUR Series SOC Socket for Polyurathane Tube

DAISEN PUR SERIES:SOC
SOCKET FOR POLYURETHANE TUBE

PART# TO SUIT PU TUBE SIZE
50-SOC 5X8MM
65-SOC 6.5X10MM
80-SOC 8X12MM
110-SOC 11X16MM
Daisen PRB Series DPC Socket for Polyurathane Tube

DAISEN PUR SERIES:PRB
SWIVEL SOCKET FOR POLYURETHANE TUBE

PART# TO SUIT PU TUBE SIZE
50-PRB 5X8MM
65-PRB 6.5X10MM
80-PRB 8X12MM
110-PRB 11X16MM
Daisen PUR Series SOR Socket for Polyurathane Tube

DAISEN PUR SERIES:SOR
SWIVEL SOCKET FOR POLYURETHANE TUBE

PART# TO SUIT HOSE ID
50-SOR 5X8MM
65-SOR 6.5X10MM
80-SOR 8X12MM
110-SOR 11X16MM
Daisen PUR Series PRB P Safety Purge Socket for Polyurathane Tube

DAISEN PUR SERIES:PRB-P
SAFETY PURGE
SWIVEL SOCKET FOR POLYURETHANE TUBE

PART# TO SUIT PU TUBE SIZE
50-PRB-P 5X8MM
65-PRB-P 6.5X10MM
80-PRB-P 8X12MM
110-PRB-P 11X16MM

ASIA 7.5mm Plastic Daisen 20 series interchangeable with Nitto Hi Couplers

Will pass up to 70CFM@90PSI

Maximum working pressure 10 bar (140 psi) burst pressure 15 bar (220 psi)

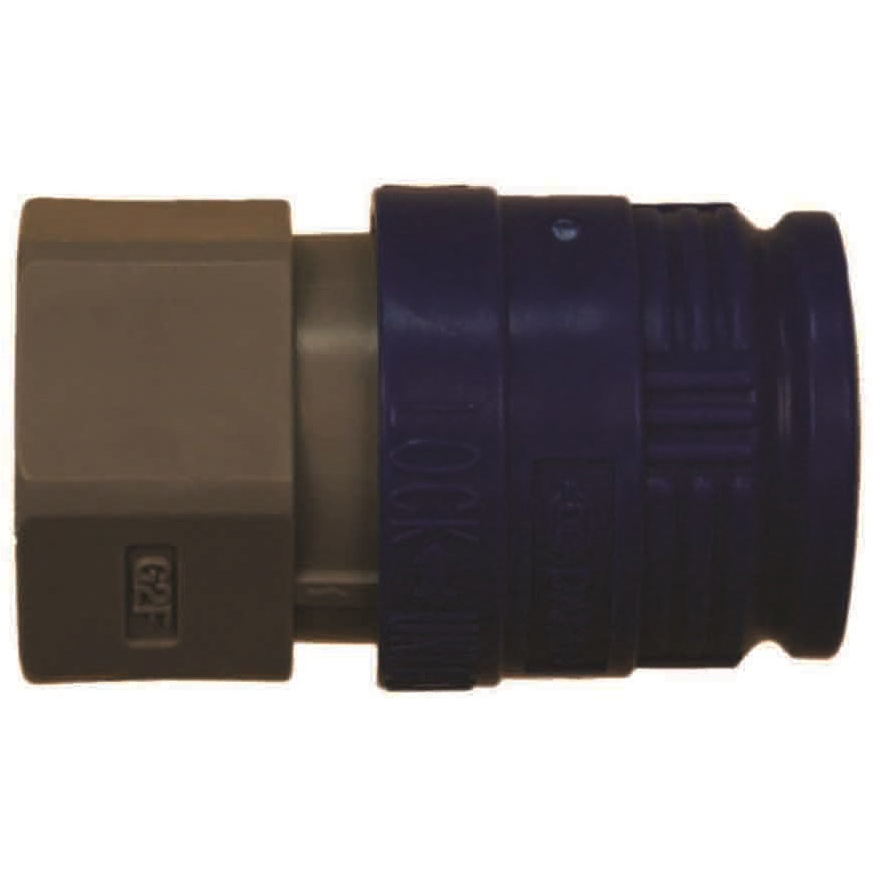

RJS-2F Daisen 20 Series Plastic Socket Female thread

DAISEN 20 SERIES PLASTIC
SOCKET FEMALE THREAD

PART# THREAD BSPF
RJS-2F 1/4"
RJS-3F 3/8"
RJS-4F 1/2"
RJP-2F Daisen 20 Series Plastic Plug Female thread

DAISEN 20 SERIES PLASTIC
PLUG FEMALE THREAD

PART# Thread
RJP-2F 1/4"
RJP-3F 3/8"
RJP-4F 1/2"
RJS-2M Daisen 20 Series Plastic Socket Male thread

DAISEN 20 SERIES PLASTIC
SOCKET MALE THREAD

PART# Thread BSPM
RJS-2M 1/4"
RJS-3M 3/8"
RJS-4M 1/2"
RJP-2M Daisen 20 Series Plastic Plug Male thread

DAISEN 20 SERIES PLASTIC
PLUG MALE THREAD

PART# Thread BSPM
RJP-2M 1/4"
RJP-3M 3/8"
RJP-4M 1/2"
RJS-2B Daisen 20 Series Plastic Socket Hosetail

DAISEN 20 SERIES PLASTIC
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
RJS-2B 1/4"
RJS-3B 3/8"
RJS-4B 1/2"
RJP-3B Daisen 20 Series Plastic Plug Hose tail

DAISEN 20 SERIES PLASTIC
PLUG HOSETAIL

PART# TO SUIT HOSE ID
RJP-2B 1/4"
RJP-3B 3/8"
RJP-4B 1/2"
RJS-80 Daisen 20 Series Plastic Socket For PU Tube

DAISEN 20 SERIES PLASTIC
SOCKET FOR PU TUBE

PART# TO SUIT HOSE ID
RJS-50 5X8MM
RJS-65 6.5X10MM
RJS-80 8X12MM
RJS-85 8.5X12.5MM
RJP-80 Daisen 20 Series Plastic Plug for PU tube

DAISEN 20 SERIES PLASTIC
PLUG FOR PU TUBE

PART# TO SUIT HOSE ID
RJP-50 5X8MM
RJP-65 6.5X10MM
RJP-80 8X12MM
RJP-85 8.5X12.5MM

Daisen LARGE 40 series interchangeable  with Nitto LARGE 100 series

PLEASE NOTE THESE COUPLERS AND ADAPTORS ARE HIGH FLOW  LARGE DIA

THEY DO NOT CONNECT WITH DAISEN 20 SERIES or NITTO HI COUPLER

Also available in brass and stainless steel

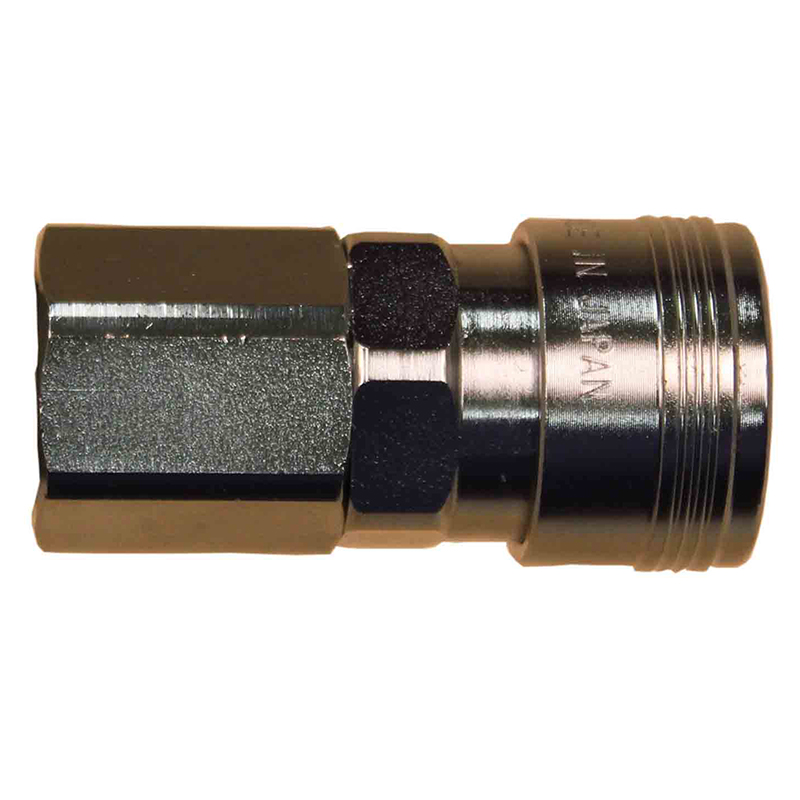

Daisen 40 Series DSF Socket Female Thread

DAISEN LARGE 40 SERIES: DSF
SOCKET FEMALE THREAD

PART# THREAD BSPF
44-DSF 1/2"
46-DSF 3/4"
48-DSF 1"
Daisen 40 Series DPF Plug Female Thread

DAISEN LARGE 40 SERIES: DPF
PLUG FEMALE THREAD

PART# Thread
44-DPF 1/2"
46-DPF 3/4"
48-DPF 1"
Daisen 40 Series DSM Socket Male Thread

DAISEN LARGE 40 SERIES: DSM
SOCKET MALE THREAD

PART# Thread BSPM
44-DSM 1/2"
46-DSM 3/4"
48-DSM 1"
Daisen 40 Series DPM Plug Male Thread

DAISEN LARGE 40 SERIES: DPM
PLUG MALE THREAD

PART# Thread BSPM
44-DPM 1/2"
46-DPM 3/4"
48-DPM 1"
Daisen 40 Series DSH Socket Hosetail

DAISEN LARGE 40 SERIES: DSH
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
44-DSH 1/2"
46-DSH 3/4"
48-DSH 1"
Daisen 40 Series DPH Plug Hosetail

DAISEN LARGE 40 SERIES: DPH
PLUG HOSETAIL

PART# TO SUIT HOSE ID
44-DPH 1/2"
46-DPH 3/4"
48-DPH 1"
locking socket hosetail bolt clamp

DAISEN LARGE 40 SERIES: DSH
LOCKING SOCKET HOSETAIL – BOLT CLAMP

PART# TO SUIT HOSE ID
44-DSH-G 1/2"
46-DSH-G 3/4"
48-DSH-G 1"
safety purge plug hosetail bolt camp

DAISEN LARGE 40 SERIES: DSH
SAFETY PURGE PLUG HOSETAIL – BOLT CLAMP

PART# TO SUIT HOSE ID
44-DPH-GP 1/2"
46-DPH-GP 3/4"
48-DPH-GP 1"

Euro 7.6mm Interchanges with Rectus 25

Max Working pressure 1050 (kPa) Flow 74CFM @ 90PSI

Also available in eSafe, Lightweight, Soft-Line, Multi-Link , two-way shutoff (Series 324) and stainless steel (Series 326) versions.

320 Series Socket Hosetail

CEJN 320 Series
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
10-320-1002 1/4"
10-320-1003 5/16"
10-320-1004 3/8"
10 -320 -1005 1/2"
10 320 5005 CEJN series plug hosetail

CEJN 320 Series
PLUG HOSETAIL

PART# TO SUIT HOSE ID
10-320-5002 1/4"
10-320-5003 5/16"
10-320-5004 3/8"
10 -320 -5005 1/2"
10-320-1155-CEJN-320-series socket male thread

CEJN 320 Series
SOCKET MALE THREAD

PART# THREAD BSPM
10-320-1152 1/4"
10-320-1154 3/8"
10-320-1155 1/2"
320 Series Plug Male Thread

CEJN 320 Series
PLUG MALE THREAD

PART# THREAD BSPM
10-320-5151 1/8"
10-320-5152 1/4"
10-320-5154 3/8"
10-320-5155 1/2"
10 320 1205 CEJN 320 SERIES SOCKET FEMALE THREAD

CEJN 320 Series
SOCKET FEMALE THREAD

PART# THREAD BSPF
10-320-1202 1/4"
10-320-1204 3/8"
10-320-1205 1/2"
320 Series Plug Female Thread

CEJN 320 Series
PLUG FEMALE THREAD

PART# THREAD BSPF
10-320-5201 1/8"
10-320-5202 1/4"
10-320-5204 3/8"
10-320-5205 1/2"
320 CEJN series socket for PU hose

CEJN 320 Series
SOCKET FOR PU HOSE

PART# TO SUIT PU TUBE SIZE
10-320-1058 5x8mm
10-320-1060 6.5x10mm
10-320-1062 8x12mm
10-320-1066 11x16mm
CEJN 320 series plug for PU hose

CEJN 320 Series
PLUG FOR PU HOSE

PART# TO SUIT PU TUBE SIZE
10-320-5058 5x8mm
10-320-5060 6.5x10mm
10-320-5062 8x12mm
10-320-5066 11x16mm
10-320-5068 13x18mm

Interchanges with Ryco 200 Series Equivalent

Max Working pressure 152PSI, 1050 (kPa)

AirFlow 37 CFM 1050 (l/min) @ 100PSI, 690kPa

One Touch Couplings also Available

F910 900 series socket hosetail

900 Series
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
F910 1/4"
F911 5/16"
F912 3/8"
F913 1/2"
F900 900 series plug hosetail

900 Series
PLUG HOSETAIL

PART# TO SUIT HOSE ID
F905 1/4"
F906 5/16"
F906A 3/8"
F915 1/2"
F900 900 series socket male thread

900 Series
SOCKET MALE THREAD

PART# THREAD BSPM
F901 1/4"
F908 3/8"
F900 900 series plug male thread

900 Series
PLUG MALE THREAD

PART# THREAD BSPM
F902B 1/8"
F902S 1/4"
F914 3/8"
F900 900 series socket female thread

900 Series
SOCKET FEMALE THREAD

PART# THREAD BSPF
F900 1/4"
F907 3/8"
F909 1/2"
F900 900 series plug female thread

900 Series
PLUG FEMALE THREAD

PART# THREAD BSPF
F955 1/8"
F903B 1/4"

Jamec 310 Single Button and 320 Twin Button Series

Interchanges with Jamec 31 series Adaptors

Max Working pressure 152PSI, 1050 (kPa)

Airflow 30CFM, 850(l/min) @ 100 PSI, 690kPa

320t6 310 series single button socket hosetail

Jamec 310 Series Single Button
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
310T4 1/4"
310T5 5/16"
310T6 3/8"
310T8 1/2"
320t6-320-series twin button socket hosetail

Jamec 320  Series Twin Button
SOCKET HOSETAIL

PART# TO SUIT HOSE ID
320T6 3/8"
310m4 310 series sinlge button socket male thread

Jamec 310 Series Single Button
SOCKET MALE THREAD

PART# THREAD BSPM
310M2 1/8"
310M4 1/4"
310M6 3/8"
310M8 1/2"

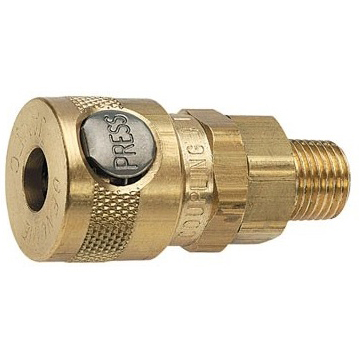

320m4 320 series twin button socket male thread

Jamec 320  Series Twin Button
SOCKET MALE THREAD

PART# THREAD BSPM
320M4 1/4"
320M6 3/8"
320M8 1/2"

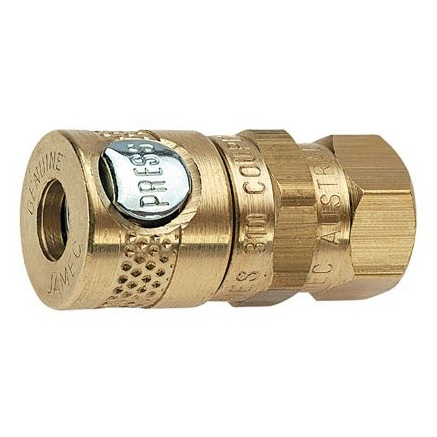

310f4-310 series single button socket female thread

Jamec 310 Series Single Button
SOCKET FEMALE THREAD

PART# THREAD BSPF
310F4 1/4"
310F6 3/8"
310F8 1/2"

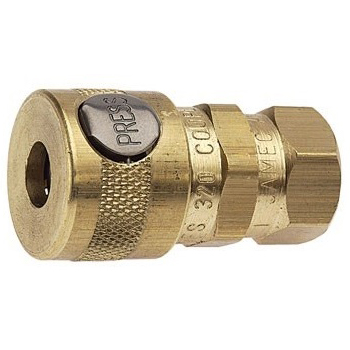

320f4 320 series twin button socket female thread

Jamec 320  Series Twin Button
SOCKET FEMALE THREAD

PART# THREAD BSPF
320F4 1/4"
320F6 3/8"
320F8 1/2"

Interchanges with 310 and 320 Jamec series

Max Working pressure 152PSI, 1050 (kPa)

Airflow 30CFM, 850(l/min) @ 100 PSI, 690kPa

plug hose tail

Jamec 31 Series Adaptors/Plugs
PLUG HOSETAIL

PART# TO SUIT HOSE ID
31T3 3/16"
31T4 1/4"
31T 5/16"
31T 3/8"
31T 1/2"
plug male thread

Jamec 31 Series Adaptors/Plugs
PLUG MALE THREAD

PART# Thread BSPM
31M2 1/8"
31M4 1/4"
31M6 3/8"
plug female thread

Jamec 31 Series Adaptors/Plugs
PLUG FEMALE THREAD

PART# THREAD BSPF
31F2 1/8"
31F4 1/4"
31F6 3/8"
fittings adaptability

OTHER SIZES AVAILABLE UPON REQUEST
