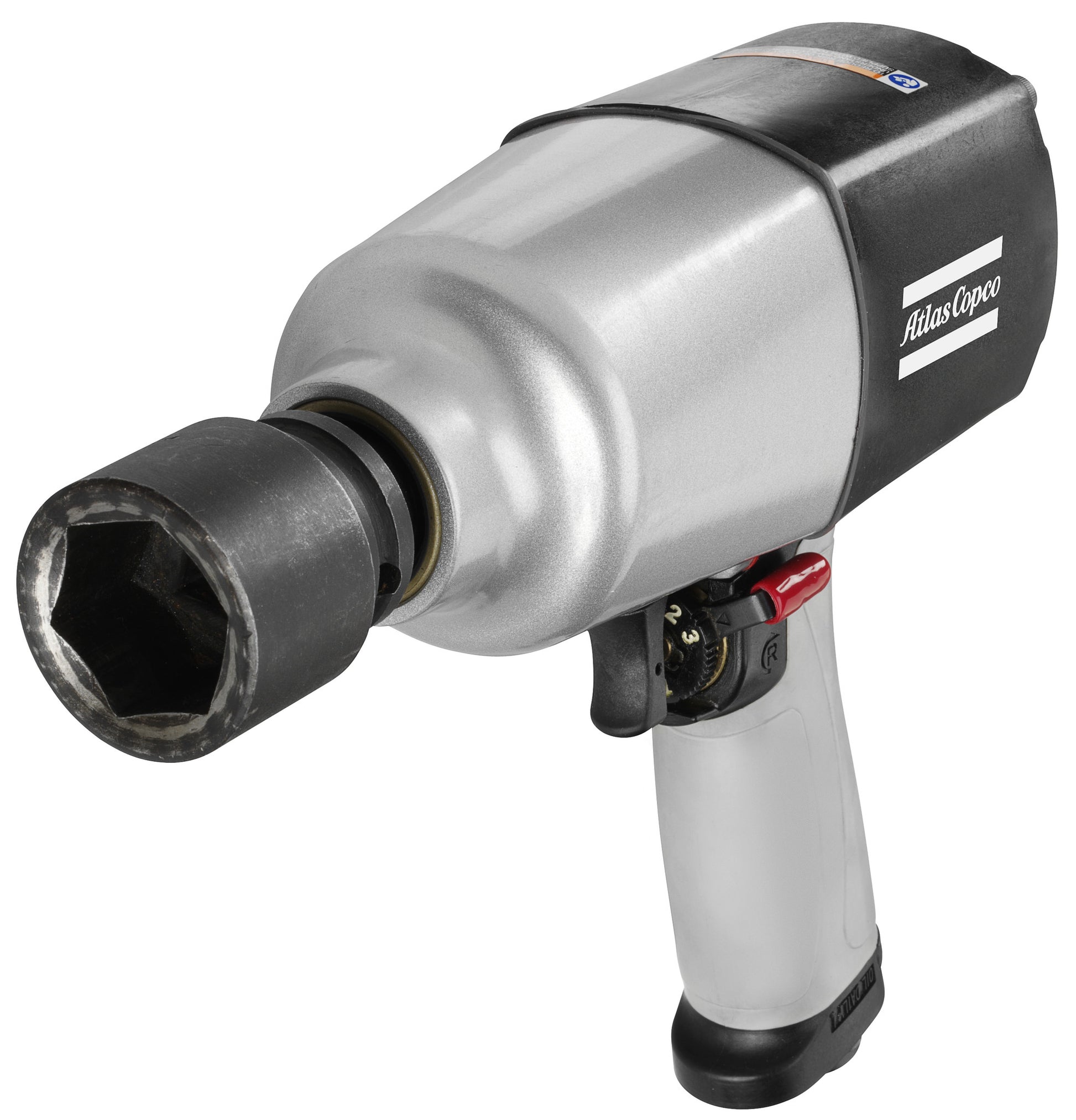

3/4" Drive Compact Line Impact Wrench W2820
3/4" Drive Compact Line Impact Wrench W2820
Regular price
$1,050.00
Regular price
Sale price
$1,050.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
PRO Compact Line impact wrenches offer a high power-to-weight ratio and can tackle the toughest industrial jobs. Powered with an advanced twin hammer mechanism, these compact impacts deliver virtuoso performance, with state-of-the-art vibration damping and noise reduction technology.
Features & benefits
- Twin hammer impact mechanism for fast run-down
- Robust fiber-glass reinforced composite housing
- Important motor parts made of steel instead of aluminum for longer life-time
- Three torque settings forward
- Thumb reverse lever and torque setting integrated with the trigger for easy operation with one hand
- Ergonomic rubber grip on handle for insulation and comfort
Technical data
| Technical Specifications | |
|---|---|
| Max torque | 1490 Nm |
| Torque range | 350 - 920 Nm |
| Free speed | 4500 r/min |
| Bolt size | 22 mm |
| Weight | 3.8 kg |
| Length | 240 mm |
| Air consumption | 20 l/s |
| Rec hose size | 330.2 mm |
| Air inlet thread BSP | 1/4 inch |
| Max working pressure | 7 bar |
| Clutch type | Twin hammer |
| Square drive size | 3/4 inch |
| Sound standard | ISO15744 |
| Sound pressure | 95 dB(A) |
| Sound power | 106 dB(A) |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 1.7 m/s² |
| Vibration value | 7.9 m/s² |
