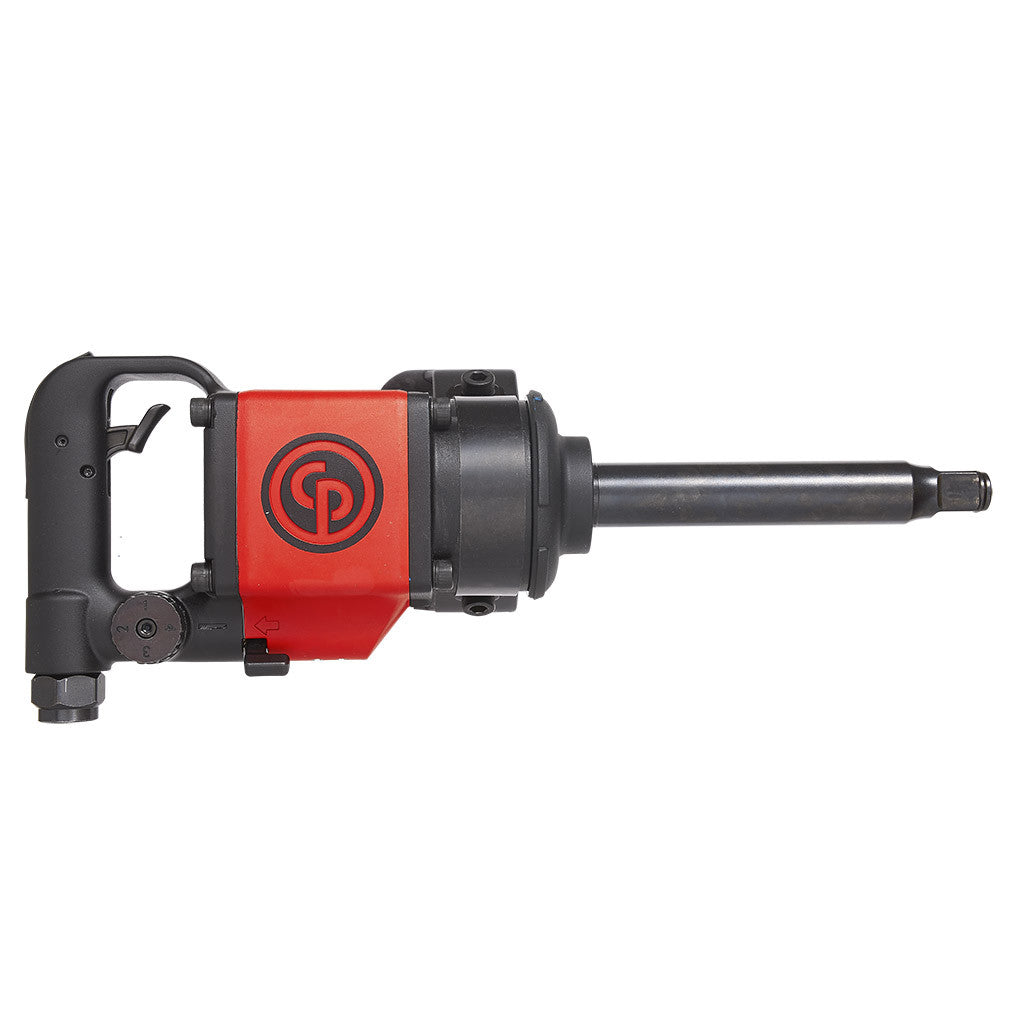

CLEARANCE - 3/4" Impact Wrench in a compact 'D' handle version - 6" Extended Anvil CP7763D-6 (CPL*)
CLEARANCE - 3/4" Impact Wrench in a compact 'D' handle version - 6" Extended Anvil CP7763D-6 (CPL*)
Regular price
$949.00
Regular price
Sale price
$949.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Benefits
- Great Performance
- Lightweight
- Comfort
- Easy to Use
- Rugged and Robust
- Easy Operation
Features
- 16.1 lbs. – 7.3 kg
- 1300 ft.lbs. / 1760 Nm in reverse
- Twin hammer mechanism
- Steel motor
- Intuitive Forward / Reverse lever & power regulator on both sides
- 4 position power settings on both sides
- Side handle with soft touch grip
- Down exhaust
- Aluminum housing
- Composite cover on the clutch housing
- Socket retainer ring
| Part number | 8941077637 | |
| Model | CP7763D-6 | |
| Handle type | D-Handle Inside Trigger | |
| Square drive | 3/4" | |
| Working Torque Range (fwd) | 250-1070 ft.lbs | 340-1450 |
| Maximum Torque (reverse) | 1300 ft.lbs | 1760 Nm |
| Free speed | 6600 rpm | |
| Net weight | 16.1 lb | 7.3 kg |
| Length | 17.5" | 445 mm |
| Side to center | 1.8" | 45 mm |
| Actual air consumption | 41 cfm | |
| Air inlet thread size | 0.5 " | |
| Min. hose size | 3/8" | 13 mm |
| Noise level | 98 db(A) | |
| Sound Power | 109 db(A) | |
| Vibration α (ISO-28927-2) | 12 m/s² | |
| Vibration K (ISO-28927-2) | 3.3 m/s² | |
| Socket retainer | Friction ring | |
| Clutch type | Twin hammer | |
| Box dimensions | 13,8*7,5*5,1 | 475*190*130 |
| Over carton | 19,7*8,3*11,4 | 500*210*290 |
Please Note: This is a clearance sale item with limited stock, orders are subject to cancelation due to availability
